Viking India

Modular ABS Grab Bar Connectors

I'd like to know when this product is available again.

Ideal for: Everyone. An essential support and precautionary aid against falls and accidents in wet zones, slippery surfaces and stairs or slopes. Especially useful for those with limited mobility, weak footing or poor balance as a result of Arthritis, obesity, Muscular Atrophy or weak muscles, Paraplegia/ Quadriplegia, post-surgery rehabilitation and other issues.
Also useful for people with low vision as a guiding aid as well as those moving on wheelchairs as an additional hold in key turning points around the house.

  • Expandable series of elements that allow you to create a range of grab points around the house
  • Helps in balancing body by spreading the weight between arms and legs
  • Comfortable to grip even for those with arthritis and weak grips
  • Quick maintenance material - no rubbing or polishing required
  • Adapts to multiple zones with contemporary design
  • Easy to install and remove from any location

  • ABS Plastic: High grade durable plastic that can take up to 180 kgs of stress. Is therefore easy to maintain with a simple wash (ideally with a sanitising liquid for hygiene) compared with rubbing or polishing steel/other materials which can be a tedious affair.
    Being plastic, it is not affected by the temperature variations and is comfortable to hold even during winters. And of course, it's a much more economical option.
  • Grooved Grip: A striped grooved grip runs along the length of the pipe. The pipe is 35 mm in diameter which makes for a large gripping circumference of 110 mm (average hand length is 175 - 180 mm).
  • Modular and Expandable: Made on the same principles as building blocks, all elements of this series can be simply clipped on to one another. We have shared a few examples in the section “Plan your Modules” below, but there’s no limit to the way the elements can be put together to ensure a safe zone around the house.
    This makes for easier replacement of parts in case of any damage, as well as expansion in future when combined with other elements.
  • Contemporary Desig: While grab bars are popular in bathrooms especially, one must consider the fact that anyone with limited mobility often needs support and gripping zones around the house. Installing the smaller grab bars at key turning points, known wet zones and staircases etc make it a useful affair not only for the individual but also for the caregiver

+Options, Warranty & Returns
  • Brand: Viking India (Aimtech)
  • Variants: Pipes - 2 (300 mm, 375 mm), Elbow Connectors - 3 (90o, 135o and 2 Wall Connector) and Flange Ends
  • Usage/Application: As a supporting aid during movement to enhance safety
  • Warranty/Guarantee: 1 year in case of manufacturing defects
  • Returns & Refunds: Only for unused product (if request is raised within 3 days of delivery) or identified manufacturing defects. Please read through our Return Policy.

+Payment Options
  • Prepaid:
    • Credit Cards, Debit Cards, Internet Banking (RTGS) and Prepaid Wallet
    • International Credit & Debit Cards are also accepted
    • EMI option is valid orders above ₹ 3000 for multiple banks
    • We also offer payment via Direct PayTM Transfers, Banker's Cheques & NEFT too. Contact Us for assistance
  • Cash on Delivery payments are also available across select PINCodes
  • To know all about payment options,click here



Dimensions Distance from Wall: 50 mm

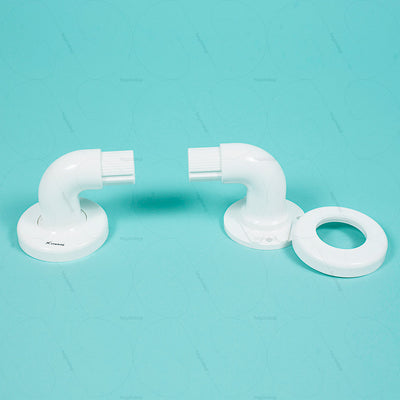

Flange Ends: 35 mm (pipe Diameter) x 40 mm (both arms) | Wall base fitting: 80 mm (Diameter) | Pipe Clip: 25 mm (diameter) x 27 mm (length)
Pipe: 35 mm (Diameter) x 3 mm (thickness) | Lengths: 300 mm / 375 mm
Elbow Connector Arms: 90o 45 mm (each) | 135o 40 mm (each) | 2 Wall Connector 125 mm / 40 mm
Weight/ Volume Pipe: 300 mm > 122 g approx | 375 mm > 176. 5 g approx
Elbow Connector: 90o > 126 g approx | 135o > 121.5 g approx | 2 Wall > 174 g approx
Flange Ends: 97 g approx
Technical Material: ABS
In the Package 1 Grab Bar Pipe [Product Code: 56747 / 56752] or 1 Elbow Connector [Product Code: 56768 / 56772 / 56775] with screw caps or 1 Flange End [Product Code: 56762]
Developed In N.A.
Country of Origin China
Certifications/ Awards N.A.


Usage/ Application As a support during movement across home
Care & Maintenance Clean with light sanitising detergent and water. Do not use abrasive liquids (acids etc) or materials (steel scrubbers) to clean as they might scratch the surface
Storage/ Do's & Don'ts Do not expose to excessive heat or sunlight
Warranty & Guarantee For 1 year from date of sale in case of manufacturing defects
Shipping Mode Air/Express: Yes      Surface: Yes
